HZJB-340A Universal 3 Phase Relay Tester Current Voltage Microcomputer Protection Relay Tester

Load Way : Electronic Load

Payment Terms : T/T

Max Diameter of Workpiece : No

Certification : GB/T19001-2016 idt ISO 9001:2015

Maxcapacity : <1000KN

Price : USD 1,000 - 10,000

Mass Scope of Workpiece : <900kg

Accuracy Grade : 0.5

Delivery Time : 5-7 working days

Loading Method : Static Load

Model Number : HZJB-340A

Model NO. : HZJB-340A

MOQ : 1

Brand Name : HZRTZ POWER

Type : Universal Testing Machine

Place of Origin : Wuhan, Hubei Province

Packaging Details : IPPC Fumigated wooden box (lSPM15)

Contact Now

Product Overview

The HZJB-340A is a 3-phase current and voltage test system designed for microcomputer relay protection testing. It is capable of testing various traditional relays and relay protection devices as well as modern microcomputer protection devices. It is particularly convenient for testing transformer differential protection and auto-reclosing devices.

The HZJB-340A Microcomputer Relay Protection Tester is a new, compact tester developed by extensively consulting user feedback and summarizing the advantages and disadvantages of similar domestic products. It fully utilizes advanced modern microelectronic technology and devices. This tester can operate independently or be connected to a laptop.

Key Highlights
  • Resists high heat, humidity, and salt spray for tropical island use
  • Runs stably at -40°C, cold-proof and anti-condensation
  • IEC compliant, complete calibration certificates provided
  • Local support: spares, on-site training, and instrument calibration

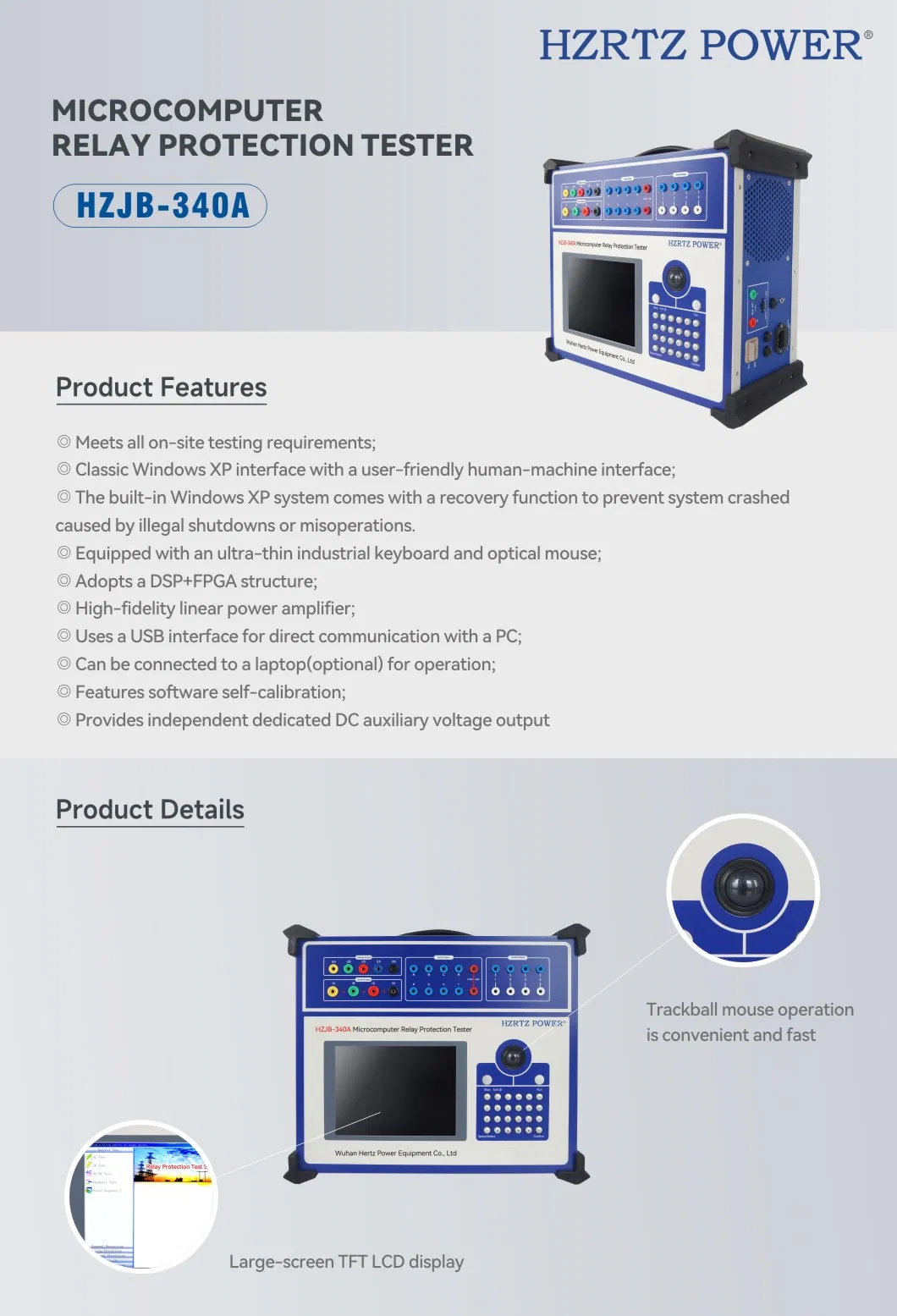

HZJB-340A Universal 3 Phase Relay Tester Current Voltage Microcomputer Protection Relay Tester
Product Features
  1. Meets all on-site testing requirements
  2. Classic Windows XP interface with a user-friendly human-machine interface
  3. Built-in Windows XP system with a recovery function to prevent system crashes caused by illegal shutdowns or misoperations
  4. Equipped with an ultra-thin industrial keyboard and optical mouse
  5. Adopts a DSP + FPGA structure
  6. High-fidelity linear power amplifier
  7. Uses a USB interface for direct communication with a PC
  8. Can be connected to a laptop (optional) for operation
  9. Features software self-calibration
  10. Provides independent dedicated DC auxiliary voltage output
Detailed Photos
HZJB-340A Universal 3 Phase Relay Tester Current Voltage Microcomputer Protection Relay Tester
Product Parameters
AC Current Output
Output Accuracy≤0.5A: ±2mA
>0.5A: 0.2%
Phase Current Output (RMS)0~40A
Three-Phase Current Output (RMS)0~120A
Phase Current Long-Term Operating System (RMS)10A
Maximum Output Power per Phase420VA
Maximum Output Power for Three-Phase Parallel Current900VA
Maximum Allowable Working Time for Three-Phase Parallel Current10s
Frequency Range (Fundamental Wave)20~1000Hz
Harmonic Times1~20 times
DC Current Output
Output Accuracy0.5 Class
Current Output0~±10A / phase
0~±30A / three phase
Maximum Output Capacity Voltage20V
AC Voltage Output
Output Accuracy0.2 Class
Phase Voltage Output (RMS)0~120V
Line Voltage Output (RMS)0~240V
Phase Voltage / Line Voltage Output Power80VA / 100VA
Frequency Range (Fundamental Wave)20~1000Hz
Harmonic Times1~20 times
DC Voltage Output
Output Accuracy0.5 Class
Phase Voltage Output Amplitude0~±160V
Line Voltage Output Amplitude0~±320V
Phase Voltage / Line Voltage Output Power70VA / 140VA
Switch and Time Measurement
Switch Input10 circuitIdle contact: 1~20mA, 24V
Switch Output8 pairsDC: 220V/0.2A; AC: 220V/0.5A
Time MeasurementMeasurement range: 0.1ms~9999s; Measurement accuracy: 0.1mS
Dimension and Weight
Dimension400 × 300 × 180 mm³
Unit Weight18kg
Power SupplyAC 220V ±10%, 50/60Hz
Environment Temperature-10ºC ~ +50ºC
Product Dimension
HZJB-340A Universal 3 Phase Relay Tester Current Voltage Microcomputer Protection Relay Tester
FAQ
Q1: Is your company a sales or a manufacturer?

We are an integrated trade and manufacturing company with our own factory.

Q2: If we need to customize our own brand or if there are special requirements for the built-in software of the machine, can it be customized?

Yes, we accept OEM/ODM/OBM and can customize the built-in software of the product according to the customer's special requirements.

Q3: What is the usual lead time? How long can we receive the order after placing it?

In normal circumstances, products in stock can be received within 5 to 7 days via the fastest international express. Other situations may vary depending on the quantity of products ordered, whether there are special customization requirements, and the delivery time chosen.

Q4: How can we ensure that the product will not be damaged during transportation, considering the large size of the product?

We have professional internal and external packaging to ensure the safety and stability of the products during transportation. For fragile or other special parts, we will include an extra set to ensure that the customer can use the product immediately upon receipt.

Q5: How do you handle after-sales service? What if there is a quality problem with the product or if the customer does not know how to operate it?

For quality issues that are not caused by human error, we provide a one-year warranty from the time the product is delivered, and lifetime technical support. Other after-sales issues will be addressed by our professional technical staff within 24 hours. The product comes with a user manual and an operation video.
